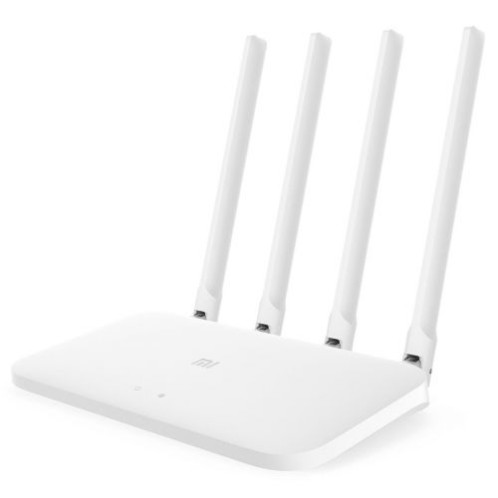

Xiaomi Mi Router 4A Wireless White EU DVB4230GL

De la marque Xiaomi votre produit vous offrira une qualité irréprochable !

High-Speed Dual Band AC1200 Router

• 4 external antennas
• Large 64 MB memory for stable connection of 64 devices*
• Control remotely via app
• Unauthorized access prevention
• Parental Control

^{*Integrated access to 2.4GHz Wi-Fi/5GHz Wi-Fi/LAN for 64 devices under test conditions}

• 4 omnidirectional external antennas
• 1167 Mbps*
• Large memory
• Stable connection

^{1167Mbps is the maximum theoretical wireless speed for 2.4GHz and 5GHz dual band concurrent Wi-Fi. Actual speeds will vary based on your environment}

Enjoy a wireless dual band speed of 1167Mbps for a faster and smoother online experience

With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the max wireless speed is up to 1167Mbps.The 2.4GHz band offers transmission over greater distances, with better coverage and better penetration through walls;The 5GHz band adopts 802.11ac technology .Less interference and higher speeds for a smoother experience watching HD videos and playing multiplayer online games.

Smart Connect, once open tihis function in app, there’s no longer any confusion over which one to connect to

The Mi Router 4A supports Smart Connect, offering 2.4GHz and 5GHz bands under one Wi-Fi name,No more confusion over which Wi-Fi network to connect to 2.4GHz offers better performance through walls, while 5GHz provides higher speeds The optimal frequency band is automatically selected by a dual-band terminal

^{To enable this feature, you need to log into the web management interface}

4 external antennas so that the signal can travel through walls better

4 external omnidirectional antennas, precision tested, and with a carefully designed internal structure and configuration Greatly improves transmission performance, even in complex environments

Dual cooling fin heat sinks for better system stability

A specially treated metal substrate is combined with nanomaterials boasting exceptional thermal radiation features Offers both excellent heat absorption and heat dissipation capabilities to effectively lower the chip temperature and provide improved system stability

Integrated signal amplifier, providing a good Wi-Fi signal and wide coverage

2.4GHz and 5GHz wireless chipset integrates PA and LNA.The PA (power amplifier) effectively strengthens the signal transmission power, while the LNA (low noise amplifier) can improve the sensitivity of the signal receiver Allows the signal to be transmitted over greater distances, with better penetration through walls, and wider coverage

In the age of the smart home, having more connected devices requires a stable network connection

Mi Router 4A has a large 64MB memory Ensures the stability of data transmission and stable connectivity of each access device

^{This data comes from the integrated access extreme value in the Xiaomi laboratory environment}

An intelligent error correction algorithm improves weak signals for more stable and efficient transmission

The 5GHz band supports the LDPC (low-density parity-check code) error correction algorithm to enhance anti-jamming capabilities during data transmission Significantly enhanced Wi-Fi signal coverage for improved efficiency in data transmission

• Wider coverage
• Intelligent error correction algorithm
• Anti-jamming for data transmission

Easily manage the time children spend online and the content they access to make sure they are kept safe online

Effectively manage your family’s time online by setting the amount of time a device may be online, and the websites that can be accessed.Combined with the intelligent speed limit function, the speed of each access device can be limited to avoid network congestion caused by individual devices

Receive a phone alert when unauthorized users access your Wi-Fi, and block them instantly

When an unknown device uses the Wi-Fi signal without permission, the Mi WiFi app can send out a notification to inform the user that a new device has connected

Internet settings even the elder family members can handle

The internet settings are quick, easy and simple enough for even the elder family members to understand!

1.Search and connect for the xiaomi_XXXX wireless network without a password
2.Visit miwifi.com, and enter your broadband account details to complete setup

^{For further details, please refer to the Mi Router 4A User Manual}

Smart app offering extensive functions and remote control

The Mi WiFi app includes many practical functions, such as Wi-Fi optimization, and unauthorized access prevention. The app makes it easy for you to manage the router and its access devices, offering remote control anytime, anywhere.Open the Mi WiFi app to check out the many other practical functions available

• Wi-Fi optimization - One-click monitoring to improve network performance
• Unauthorized access prevention - Proactive blocking to eliminate the risk of unauthorized network access
• Device management - Set how long devices can be connected to the internet for, and the websites they are able to access
• Healthy mode - Switches off Wi-Fi at a set time to encourage healthy habits
• Upgrade assistant - Automatically detects updates to make sure you have the best experience

Eco-friendly casing to protect the environment

Both the Mi Router 4A casing and packaging are made of recyclable and environmentally friendly materials that cut down on environmental damage so that we can protect our precious planet

Rigorous testing in the pursuit of excellence

Power stability tests - Over 220,000 test cycles - 4 scenarios, cumulative number of 20 devices being powered on and off

Hardware structural reliability testing - Over 6 test cycles - Drop testing: against a marble floor, from a height of 1 meter

Extreme environment testing - Over 1000 hours - 6 scenarios, cumulative testing with 4 devices

Memory stress testing - Over 180,000 test cycles - Cumulative number of read and write operations on 20 sample devices

Testing of multiple simultaneous device connections - 64 devices

Flash memory device reliability testing - Over 100,000 test cycles - Flash continuous read/write tests

^{For further details, please refer to the Mi Router 4A Instruction Manual}

Collaborations with authoritative international test instrument manufacturers ensure router stability

In cooperation with authoritative international test instrument manufacturers such as Spirent and lxia, we conduct large-scale tests simulating scenarios in the home and router performance under extreme conditions to ensure that the router is able to operate stably under various conditions

The simple design sits easily in any home

The router body has an understated geometric form and durable non-coated matte white plastic shell which blends in with the home

Specifications:

• Dimensions: 188 mm x 100.5 mm x 175 mm
• Product color: White
• Processor: MT7628DA
• ROM: 16MB
• Internal memory: 64MB
• 2.4GHz Wi-Fi: 2x2 (supports the IEEE 802.11n protocol, maximum possible speed of 300Mbps)
• 5GHz Wi-Fi: 2x2 (supports the IEEE 802.11ac protocol, maximum possible speed of 867Mbps)
• Product antennas: 4 external omnidirectional antennas (two 2.4GHz antennas with maximum gain of 5dBi; two 5GHz antennas with maximum gain of 6dBi)
• Product heat dissipation: Natural heat dissipation
• Total interfaces: Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX) One 10/100M self-adaptive WAN port (Auto MDI/MDIX)
• LED indicator lights: 2
• System reset buttons: 1
• Power input interface: 1
• Protocol standards: IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
• Certification standards: GB9254-2008 YD/T993-1998 GB4943.1-2011

Dual band: 2.4GHz and 5GHz

• Modulation: 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
• 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
• 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
• 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 2 streams)
